In modern industry, mould bases are essential whenever mass production is involved—whether for automobiles, aerospace components, consumer goods, toys, household appliances, communication equipment, or medical products. A mould base serves as a semi-finished product for plastic injection and die casting moulds, consisting of various plates and precision components. Functionally, it supports, positions, and cools the moulding section (core and cavity), playing a crucial role in the final product’s precision, production efficiency, and overall mould longevity.

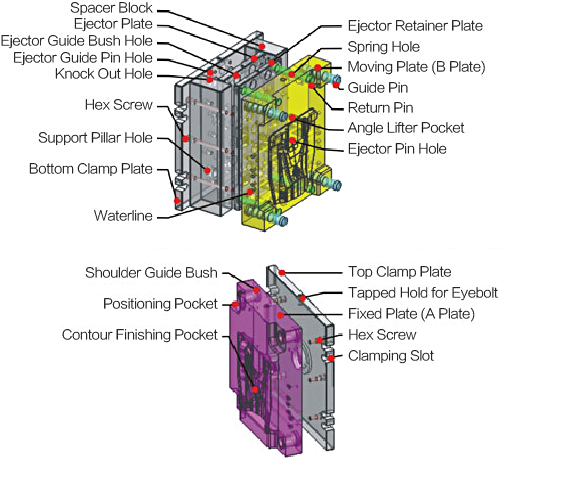

The diagram shows a typical mould base structure. During injection moulding, the two halves come together, allowing molten plastic to form within the mould cavity. After solidification, the mould separates, and the ejector system, primarily housed in the lower mould, pushes the finished product out.
Whether it’s injection moulding or die casting, the forming process occurs under high pressure when the A/B plates are clamped together. These A/B plates are considered the most critical plates within the mould. For applications requiring greater strength and durability, high-grade carbon steel or alloy steel is used to ensure A/B plates withstand extreme working conditions. In cases where special surface finishes—such as polished or textured surfaces—are required, premium mould steel inserts are embedded within the A/B plates. This approach balances product quality with cost control.
For many mould makers, procuring the correct raw material and maintaining CNC machining centres can be challenging and expensive. Choosing a mould base supplier with reliable materials and processing capabilities allows mould makers to focus on their core competencies, while minimising unnecessary costs.
Standard vs. Custom Mould Bases
Standard Mould Bases:
Manufactured using state-of-the-art automated production lines, the LKM Standard Mould Bases are widely regarded as best in class in China and wider Asia markets. Our standard mould bases offer a powerful combination of consistent quality and reasonable pricing. When ordered together with the hugely popular and flexible add-on machining services via our unique online platform, our products offer superb value that is unmatched by competitors and imitators.
Custom Mould Bases:
For moulds with higher precision requirements, complex internal designs or non-standard material requirements, the LKM custom mould bases are the preferred choice for mould makers worldwide. Our team of engineers and machinery portfolio are unrivalled, and have been leading the industry for over 30 years.
